HPR 130® & 260® - For Stainless Steel Applications

HPR 130® & 260® - For Stainless Steel Applications
HPR 130® & 260® - For Stainless Steel Applications
Order Replacement Parts

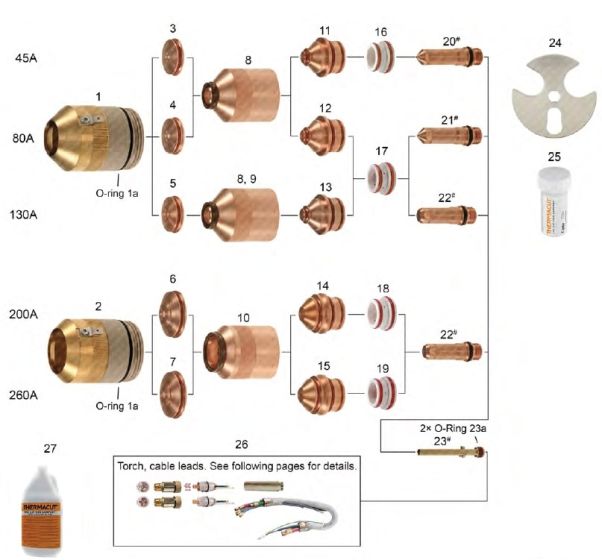

Illustration # Part # Product Description
1 HT9961
Shield Cap, MS, SS/AL 30-130A

220173-UR
2 HT9964
Shield Cap, 200-260A

220398-UR
3 HT9975
Shield, 45A, S.S./Al.

220202
4 HT9979
Shield, 80A, S.S.

220338
5 HT9982
Shield, 130A, S.S./Al.

220198
6 HT10879
Shield, 200A, S.S./AL.

220345
7 HT10880
Shield, 260A, S.S./AL.

220407
8 HT11145
Retaining Cap, 45-130A, S.S.

220304
9 HT11144
Retaining Cap, 80-130A, M.S.

220176
10 HT11147
Retaining Cap, 200-260A, S.S.

220344
11 HT9977
Nozzle, 45A, S.S./AL.

220201
12 HT9980
Nozzle, 80A, S.S. (Pack of 5)

220337
13 HT9983
Nozzle, 130A, S.S./AL. (Pack of 5)

220197
14 HT9987
Nozzle, 200A, S.S.

220343
15 HT9990
Nozzle, 260A, S.S./AL.

220406
16 HT10297
Swirl Ring, 30-45A

220180
17 HT10295
Swirl Ring, 80A-130A

220179
18 HT10579
Swirl Ring, 200A, S.S./AL

220342
19 HT10596
Swirl Ring, 260A, S.S./AL

220405
20 HT9978
Electrode, 45A, S.S./Al. (Pack of 5)

220308-UR
21 HT9981
Electrode, 80A, S.S. (Pack of 5)

220339-UR
22 HT9984
Electrode, 130-260A, S.S./Al. (Pack of 5)

220307-UR
23 HT9882
Cooling Tube

220340-UR
23a HT9962
o-ring (1-009s) (Package of 10)

o-ring 1-009s


N-10055
24 HT9952
Assembly Removal Tool

104119-UR
25 HT0994
Lubricant/Grease 25ml

T-0994 / EX-0-805-001
26 HT9957
Torch, Cable leads

Phone order only!
27 HT9959
Coolant: Inhibited Proplene Glycol based (Pack of 4)

Coolant: Inhibited Proplene Glycol based


CFPG-1G
Phone Order Only! Please Call: 558-526-4121
