PT36®

PT36®
PT36®
Order Replacement Parts

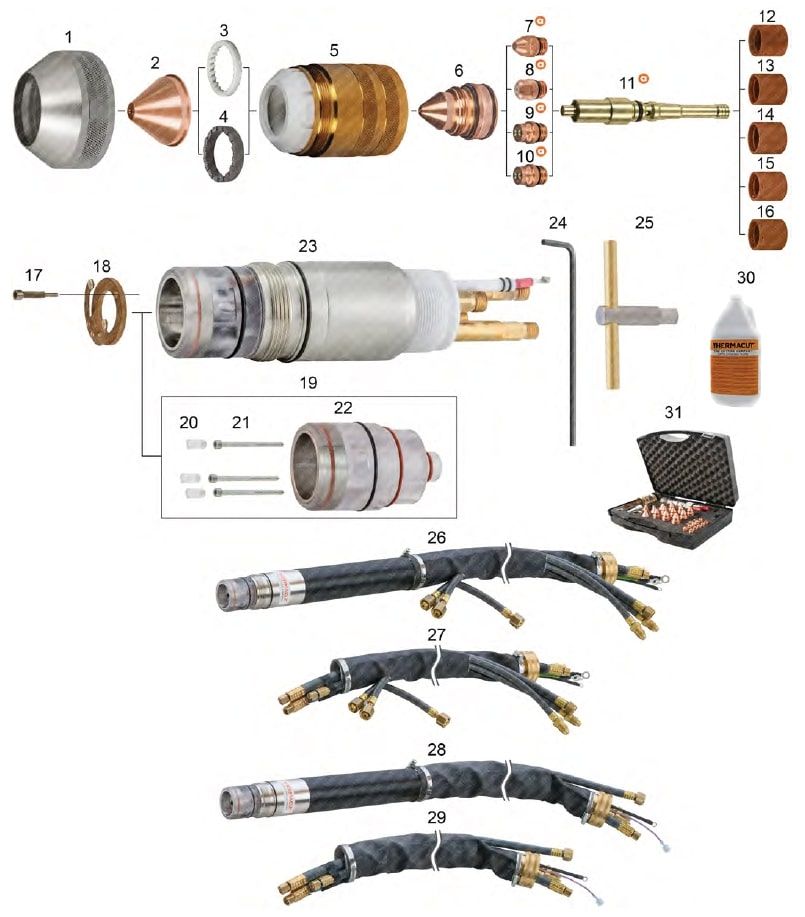

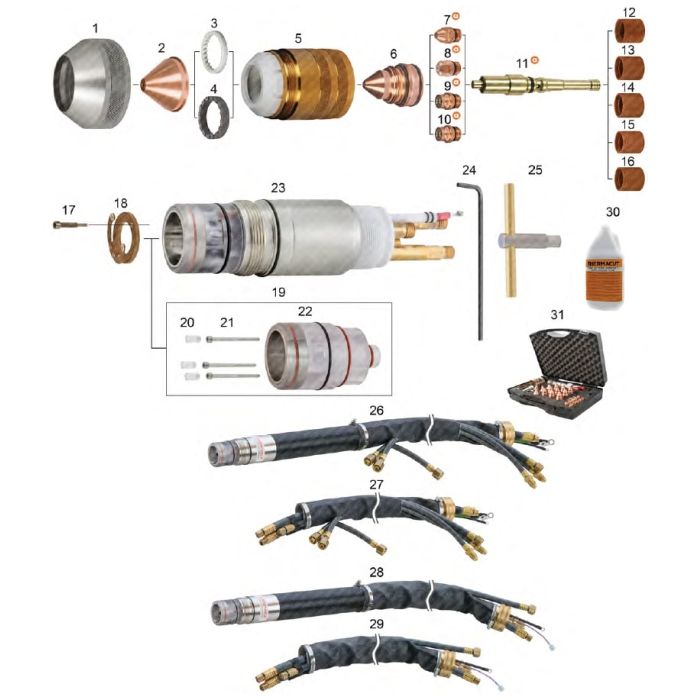

Illustration # Part # Product Description
1 HT10128
Shield, Retainer

37081
2 HT12231
Shield 2.5 mm

558009425
2 HT10334
Shield Cap 6.6 mm

558006166
2 HT10333
Shield Cap 3.0 mm

558006130
2 HT10332
Shield Cap 4.1 mm

558006141
2 HT10463
Shield Cap 2.4 mm

558007624
2 HT10335
Shield Cap 9.9 mm

558006199
3 HT2269
Diffuser, 100-360A

21944
4 HT2268
Diffuser, 50A

21796
5 HT10129
Nozzle Retainer Cup

37082
6 HT12229
Nozzle 0.6 mm

558009406
6 HT12230
Nozzle 1.0 mm

558009410
6 HT10338
Nozzle 2.0 mm

558006020
6 HT10339
Nozzle 2.3 mm

558006023
6 HT10443
Nozzle 3.0 mm

558006030
6 HT10292
Nozzle 4.1 mm

558006041
6 HT10336
Nozzle 1.0 mm

558006010
6 HT10970
Nozzle 1.8mm, 130A

558006018
6 HT10340
Nozzle 2.5 mm

558006025
6 HT10337
Nozzle 1.4 mm

558006014
6 HT10341
Nozzle 3.6 mm

558006036
7 HT12228
Electrode 30-60A (Pack of 5)

0558009400-PRO
7 HT11910
Electrode, 600A N2/H35 (Pack of 5)

0558003928-UR
7 HT10439
Electrode, Low Current (Pack of 5)

0558005459 OEM
8 HT9967
Electrode 50-250a, Silver PRO (Pack of 5)

t-11303-pro
9 HT11290
Electrode, 100-450A, Silver Pr (Pack of 5)

0558003914-PRO
10 HT11994
Electrode, 100-450A, Silver Pr (Pack of 5)

0558012000-PRO
11 HT11319
Electrode Holder

0558003924-UR
13 HT4607
Gas Baffle,4 Hole x .032, CCW

558002534
14 HT4606
Gas Baffle, 4 Hole x.032

558002533
15 HT4636
Gas Baffle, 8 Hole x .047, CW

558001625
16 HT11119
Gas Baffle, 8 Hole x .047, CCW

558002530
17 HT11942
Screw, Contact Ring

37073
18 HT11863
Contact Ring w/Screw

558003858
23 HT9951
Torch Body, PT-36

558003804
24 HT20426
Hex Key Wrench

93750010
25 HT9920A
Electrode Holder Removal Tool

0558003918 OEM
30 HT9959
Coolant: Inhibited Proplene Glycol based (Pack of 4)

Coolant: Inhibited Proplene Glycol based


CFPG-1G
30 HT9959a
Ethylene Glycol based coolant (Pack of 4)

Ethylene Glycol based coolant
HT9934
Shield, Micro 2.0mm (Pack of 5)

0558009520 OEM
HT9935
Shield Retainer XR

0558009548 OEM
HT9936
Nozzle Retaining Cup

0558009550 OEM
HT9937
Shield XR 5.1mm (Pack of 5)

0558009551 OEM
HT9938
Nozzle XR 2.2mm (Pack of 5)

0558010722 OEM
HT9939
Shield XR 6.6mm (Pack of 5)

0558010766 OEM
HT9940
Nozzle XR 1.9mm (Pack of 5)

0558011619 OEM
HT9950
Nozzle XR 2.5mm (Pack of 5)

0558011625 OEM
HT9921
Nozzle XR 2.8mm (Pack of 5)

0558006028 OEM
HT9924
Nozzle Retaining Cup w/Wtr Inj

0558009300 OEM
HT9925
Electrode Holder Short

0558009304 OEM
HT9926
Nozzle water Inj 1.8mm (Pack of 5)

0558009318 OEM
HT9927
Nozzle water Inj 2.5mm (Pack of 5)

0558009325 OEM
HT9928
Nozzle water Inj 4.0mm (Pack of 5)

0558009340 OEM
HT9929
Nozzle water Inj 5.1mm (Pack of 5)

0558009351 OEM
HT9930
Nozzle water Inj 5.8mm (Pack of 5)

0558009358 OEM
HT9931
Shield Retain XR w/air curtain

0558009392 OEM
HT9932
Shield Ret Std Ins w/air curtn

0558009395 OEM
HT9922
Nozzle Retain Cup, Speedloader

0558006624 OEM
HT9923
Nozzle 0.8mm (Pack of 5)

0558006908 OEM
HT9933
Nozzle, Micro 1.1mm (Pack of 5)

0558009411 OEM
HT11208
O-Ring Lubricant/Grease 25ml

4470869
Phone Order Only! Please Call: 558-526-4121
