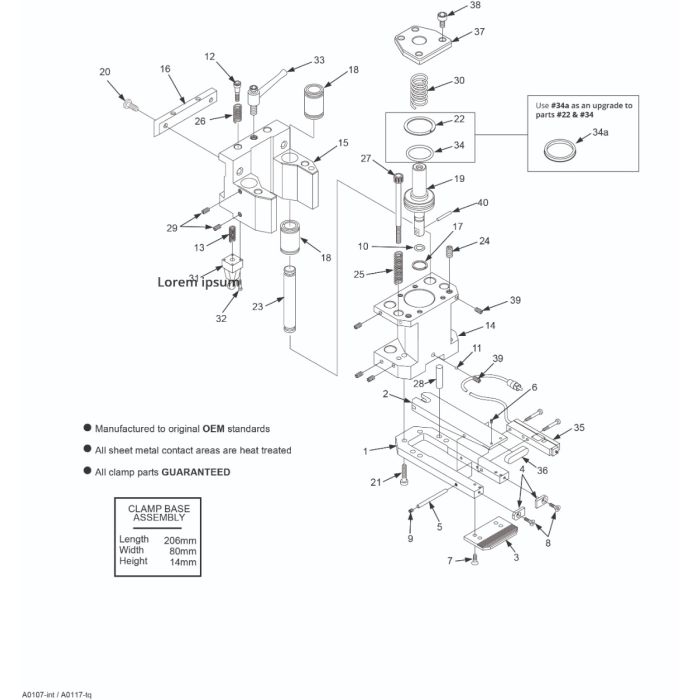

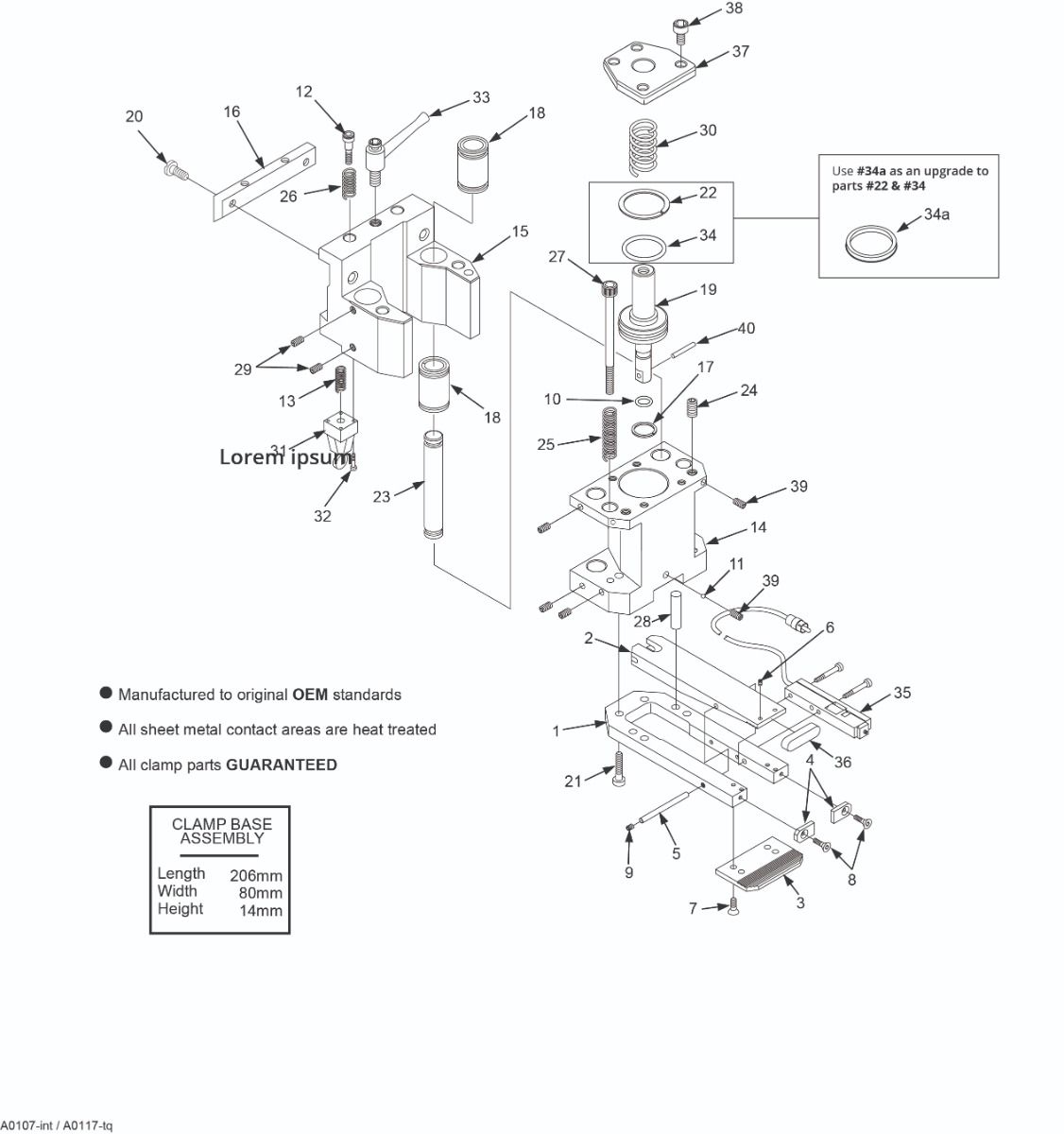

Replacement Parts For A0107-INT

Amada # 826271 / 74315820

Clamp Base Assembly EM Hydraulic

Amada # 74315826

Amada # 74315825 / 826194

Amada # 74569334 / 826272 / 74161576 / 74569480 / 826274

Amada # 74161353 / 816026

Amada # 74198999

Set Screw cup M5 X 6 Pkg of 10

Amada # 74569335 / 826035 (m6x12)

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

Amada # 79999115 / m10x12

Amada # 90014022

Amada # 74316027

p337135015 / Shoulder Bolt M8 x 25

Spring

Clamp Body-Piston Side-Hydraulic

Amada # 74165903 / 816004

Amada # 74717102 / 74161337 / T2-P22 / P-22-T2

Linear Bearing ST16B

Amada # 74303513 / 826184b

Amada # 74165904 / 816005

Amada # 36147516 / screw SHCS M8x25

Amada # 74717104 / 74161338 / T2-32 / P-32-T2

Rod 16mm x 120mm

Amada # 74305509 / M10x14 / Set Screw (dog end)

Amada # 74390105 / 826218

Amada # 74165905 / 816006

Amada # 90106100 / M6 X 100

Amada # 74377352

M4 X 6 Cone Point Set Screw

Amada # 74315813 / Cylinder Spring (Hydraulic)

6wph200-1 / Amada # 74163416

Amada # 74722739 / p330590023

Clamp Lever Assembly - 12MM
Amada # 806075

O-Ring P-32 (90 Durometer)

U-Cup Seal

Amada # 74161252 / 8635270D

Urethne Boot - For Clmper Tp 1

Cylinder Cap (New Hyd.)

m6x12 / Amada # 36147526

Dowel Pin 8 x 30

Set Screw M6 X 6 PKG of 10
